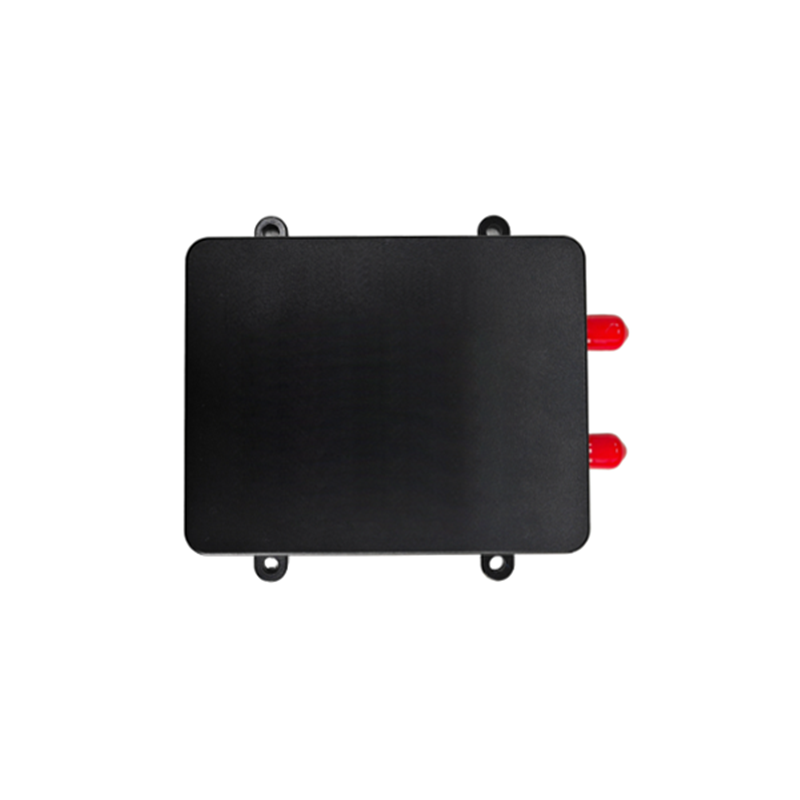

KXAT103G_ 4 B1L1E1Anti-interference Antenna

The frequency point signal processing module is highly integrated.
It features low noise figure, high gain, good array element consistency, and low mutual coupling.

Performance Indicators

Array Element	4 Channels of B1/L1/E1
Anti-interference Frequency Point	B1：1561.098MHz±2.046MHz； L1: 1575.42MHz±1.023MHz； E1: 1575.42MHz±24.55MHz；
RF Output Power	-50dBm～65dBm
Anti-interference Processing	Number of Channels: 4 B1/L1 channels; Anti-interference Type: Capable of resisting multiple suppressive interferences such as wideband, frequency-sweeping and pulse interferences in BDS_B1 and GPS_L1 frequency bands; Number of Concurrent Interferences Resisted: Capable of counteracting 1–3 interference sources from different directions simultaneously; Single Wideband Interference Resistance: Jamming-to-Signal Ratio ≥ 95dB @ -130dBm; Triple Wideband Interferences Resistance: Jamming-to-Signal Ratio ≥ 85dB @ -130dBm.
MTBF	≥9000h
Interfaces and Overall Dimensions	1 J30J Low-Frequency Digital and Power Interface (+9V ~ +32V) 1 SMA-K RF Interface (supports 5V, 50mA power feeding)
